Furling Genoa

SOLD

Plastimo system (the best, reliability and quality)

forestay length= 8.65m (usually a forestay is shackled to deck plate but roller furling needs the base bolted either sid of deck plate ring to stop drum moving properly, so...

assembled length = forestay + bottom drilled adjustment of 7cm added at base is 8.72m

maximum stretched luff measurement would be 8.72 - 20cm at bottom, - 12cm lost on the head bearing, and - 26cm (8.46-8.72) top limit the bobbin goes short of the halyard eye = 872-20-12-26 =8.14 m

The genoa i have in the sails page has unstretched luff of 7.57m (between hoops), which gives enough for stretch, and also allows a 12” cord between drum and foot if you want more under-foot visibility, without running out of track room.

Halyard with s/s eye to match

Full manual avail on request for assembly/disasembly/changing length spare parts etc

Spare parts - please ask

Genoa has uv strip, really good shape. - see the other furling genoa page

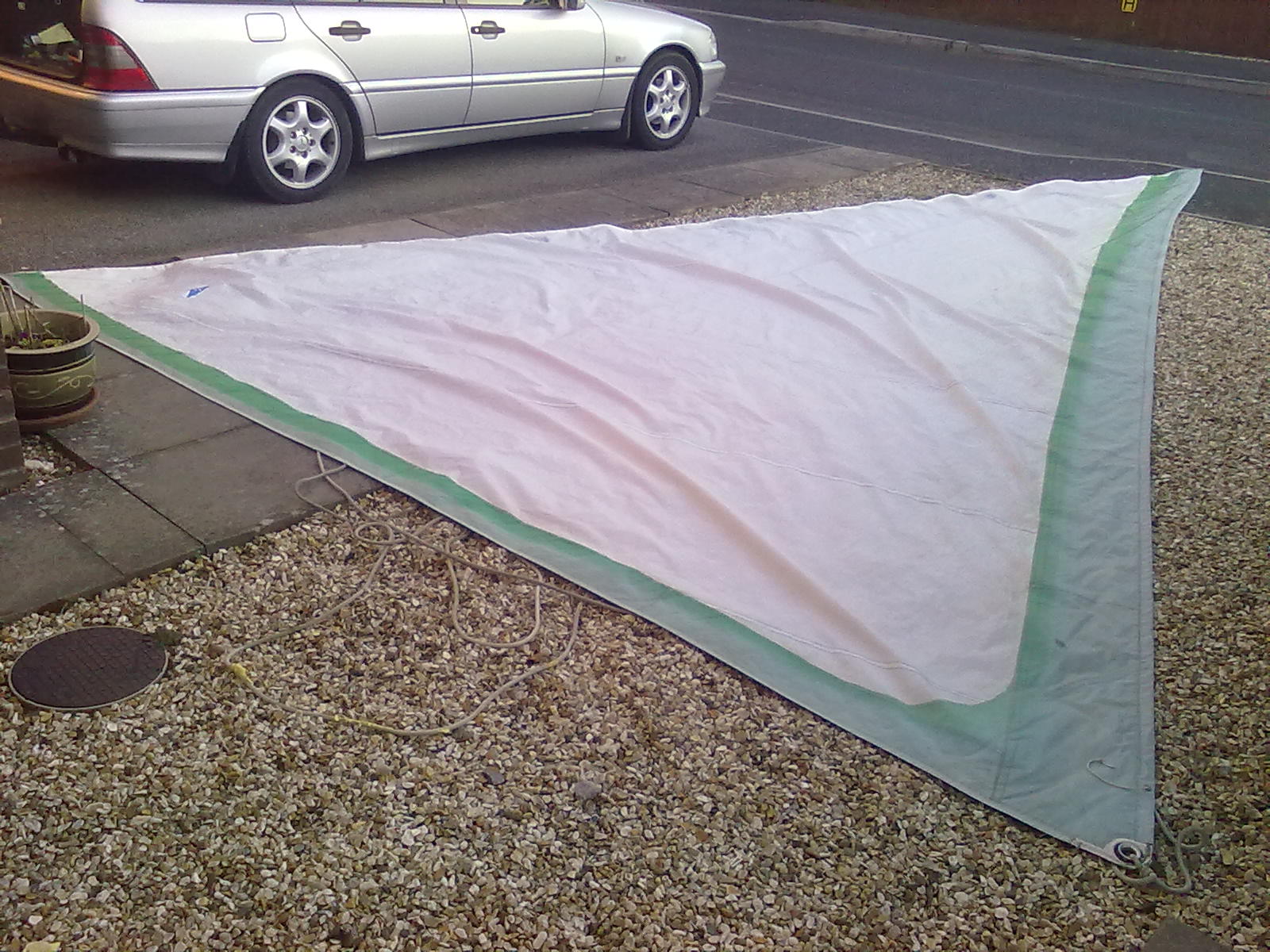

2010 lgenoa measured out - see sails page

2010 lower end removed from boat (disconnected mast top shackle to do this)

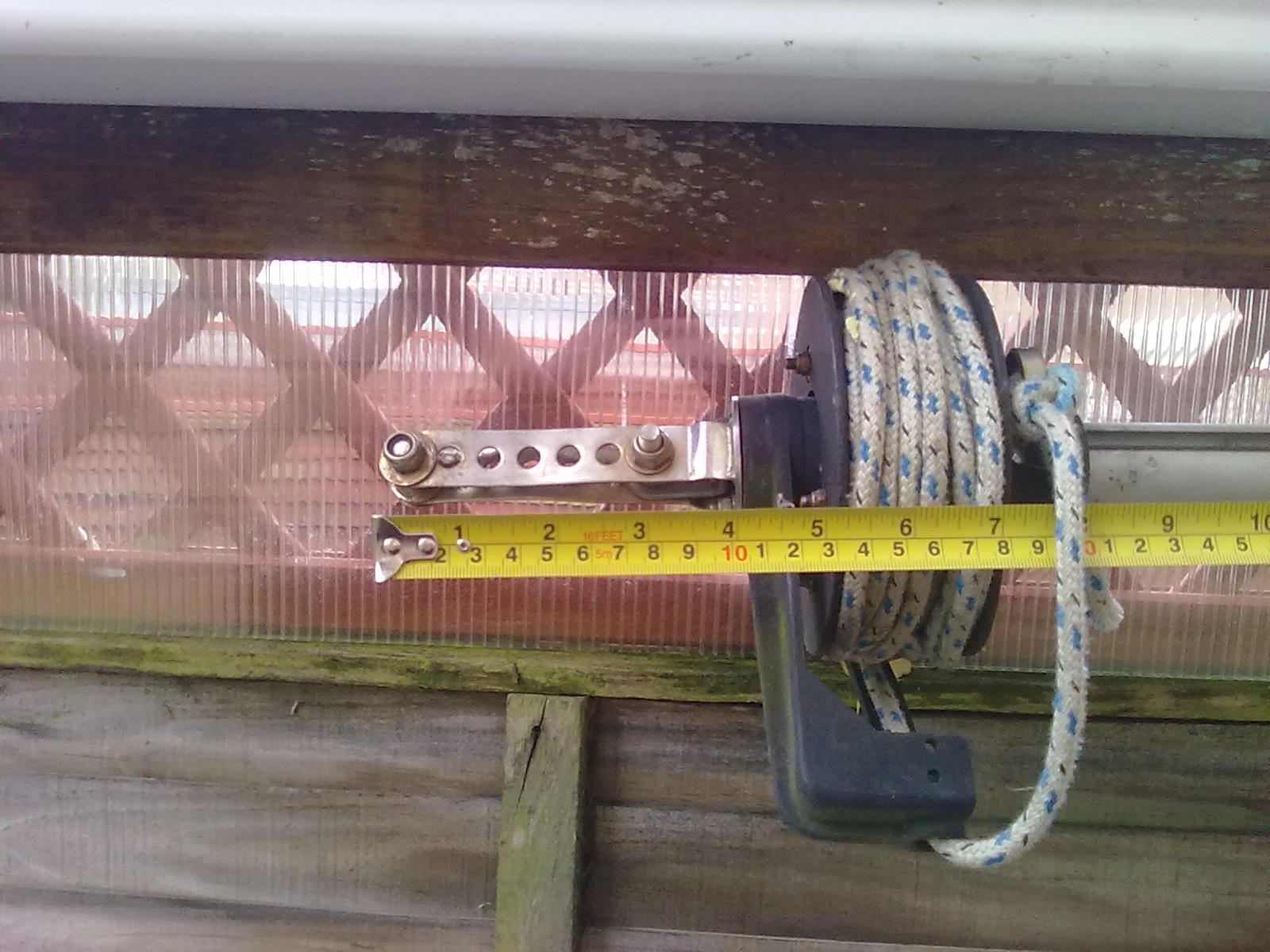

2010 lower end measured (can be shortened 5cm easily), note sail clew @ 20cm but this can have strop to raise if you want more visibility under sail foot)

2010 lower end luff guide and sliding rotating head carrier with ss halyard att.

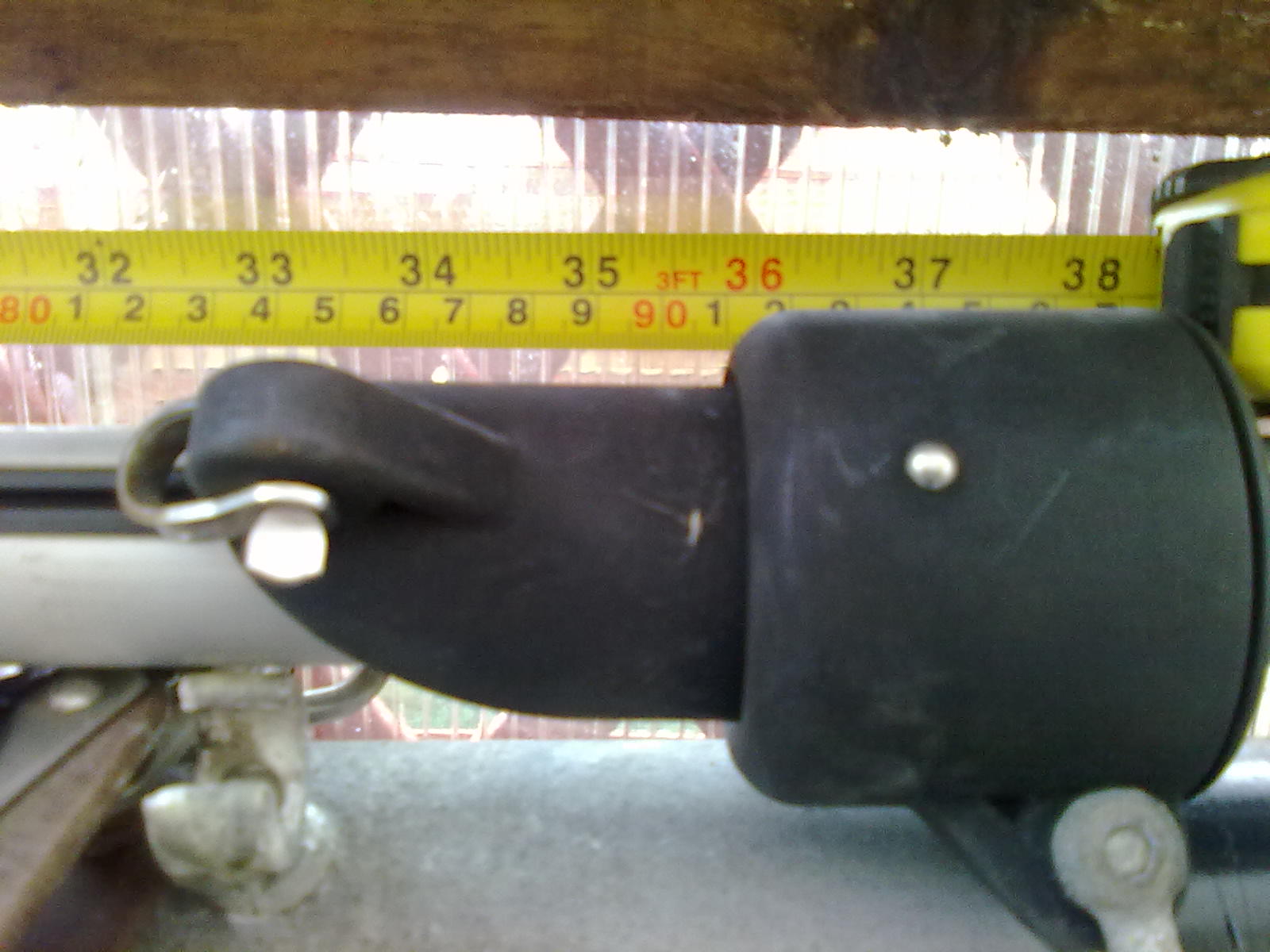

2010 detail of head bearings, note 15cm between sail head and bearing top (limit of slide)

2010 upper end (+5m);=8.46m slide limit, 8.72m forestay length

Changing dimensions:

to fit a new forestay, the rivets are easily drilled out, then the halyard liners can be pulled out, then the halyard may be replaced, lenghtened or shortened. The one in it is ss and very strong uprated for this boat new in 2002. you could more easily lengthen by adding a length above. If the halyard needs to be shortened by more than 10cm, i would suggest it is first removed, then you can saw the alloy tubes to length, refit the halyard, liner and cap with new rivets in about half an hour. bear in mind the maximum luff i quoted above would have then reduced accordingly, so the sail i have might not fit then, but is perfect as it is luff 7.57 unstretched between hoops
